Description
Ideal for use with ag, industrial, commercial, recreational and many other types of trailers.
- 5,000lb Support Capacity / 3,000lb Lift Capacity
- Large grooved comfort handle to operate the jack

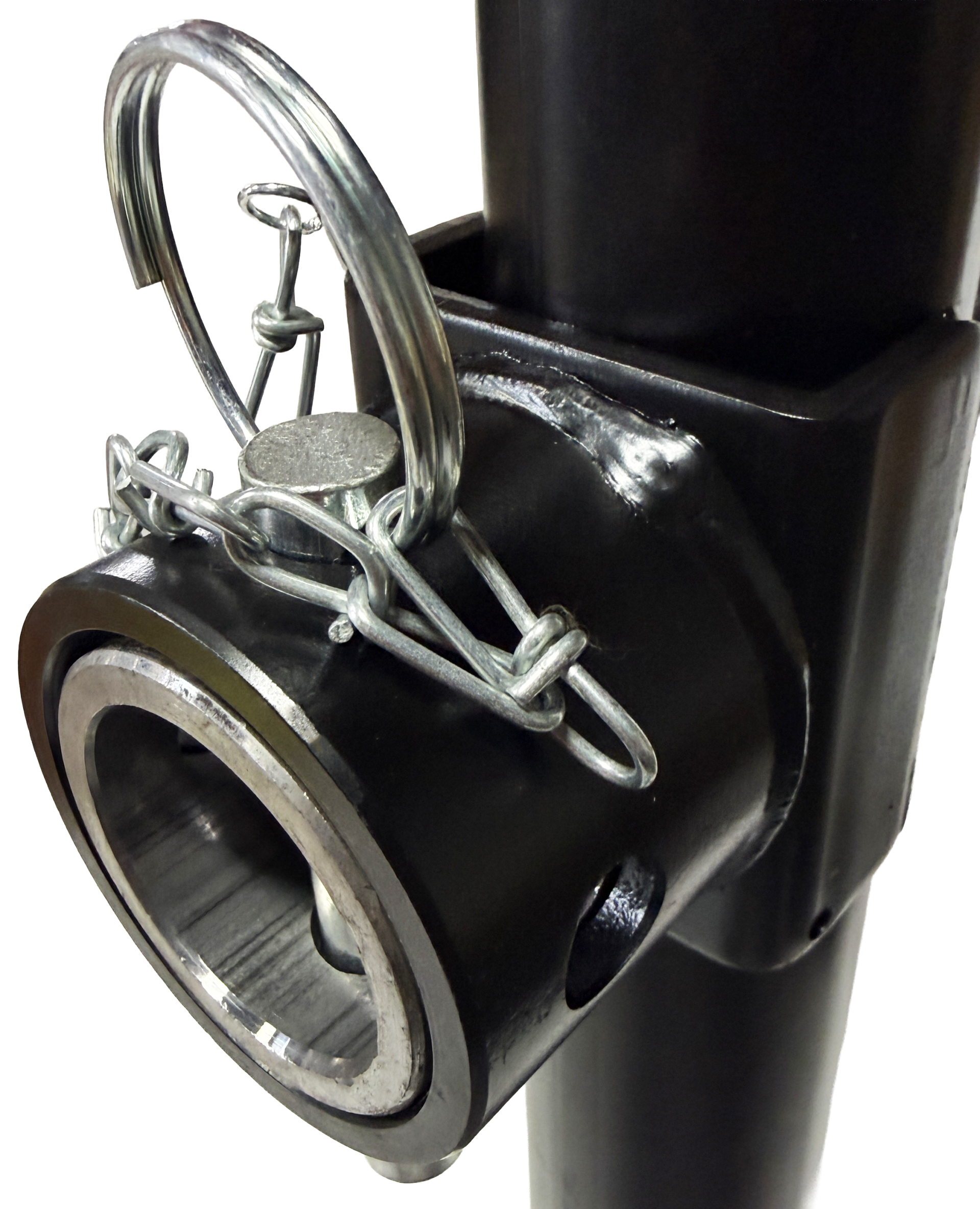

- 5/8″ pin and lanyard assembly affixed to the jack
- Durable exterior grade black finish on outer tube and clear zinc finish on inner tube and foot (2 1/4″ outer tube construction)
- Grease zerk for easy greasing of jack
- Includes a 2″ raw round weld on mating pipe
- 3-3/4″x7-1/2″ welded on durable zinc sand foot

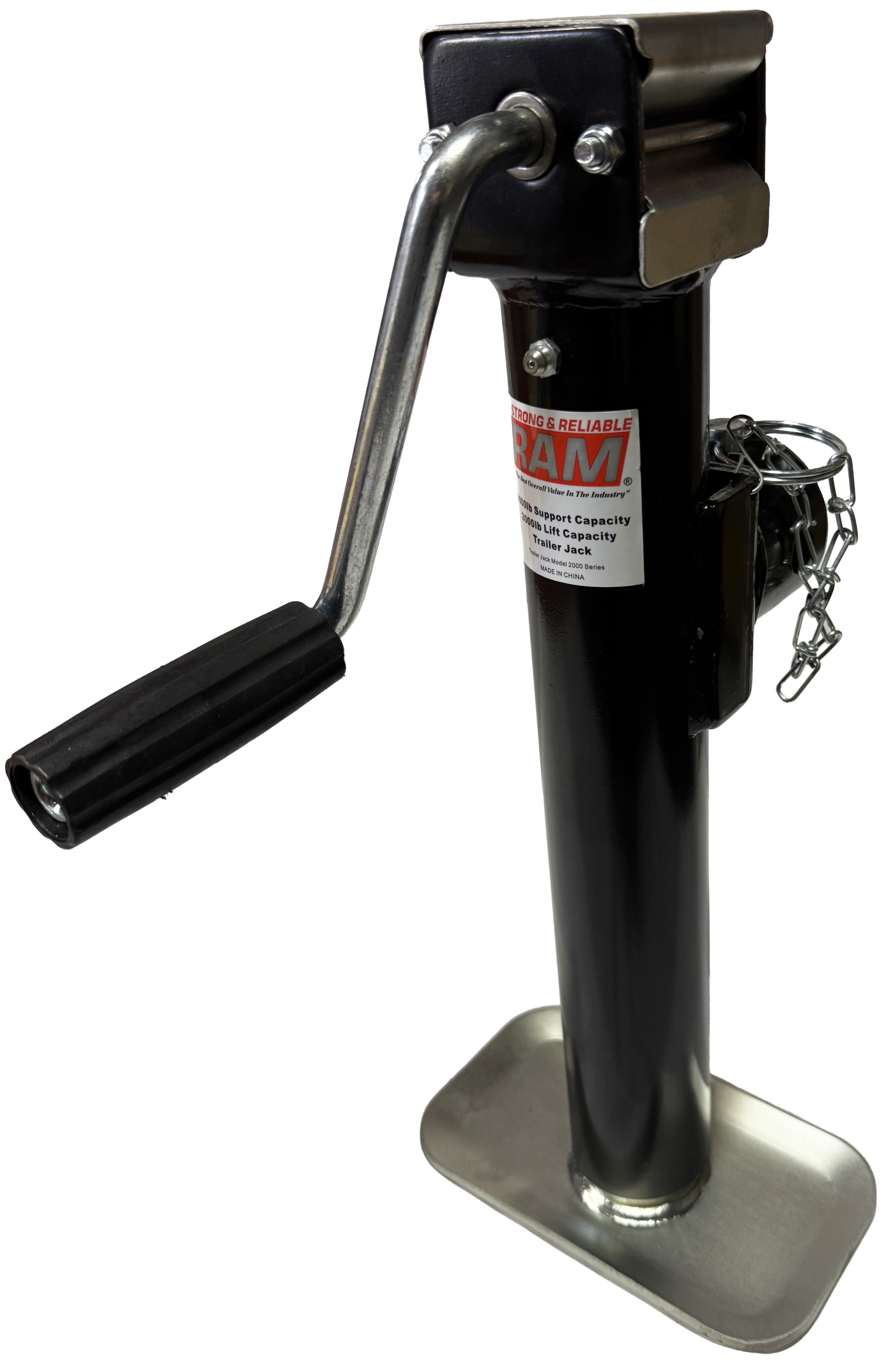

- TJP-5001S-B 10″ travel distance, 10″ bracket height from bottom of jack to center of swivel mount, 17.5″ jack height when fully retracted

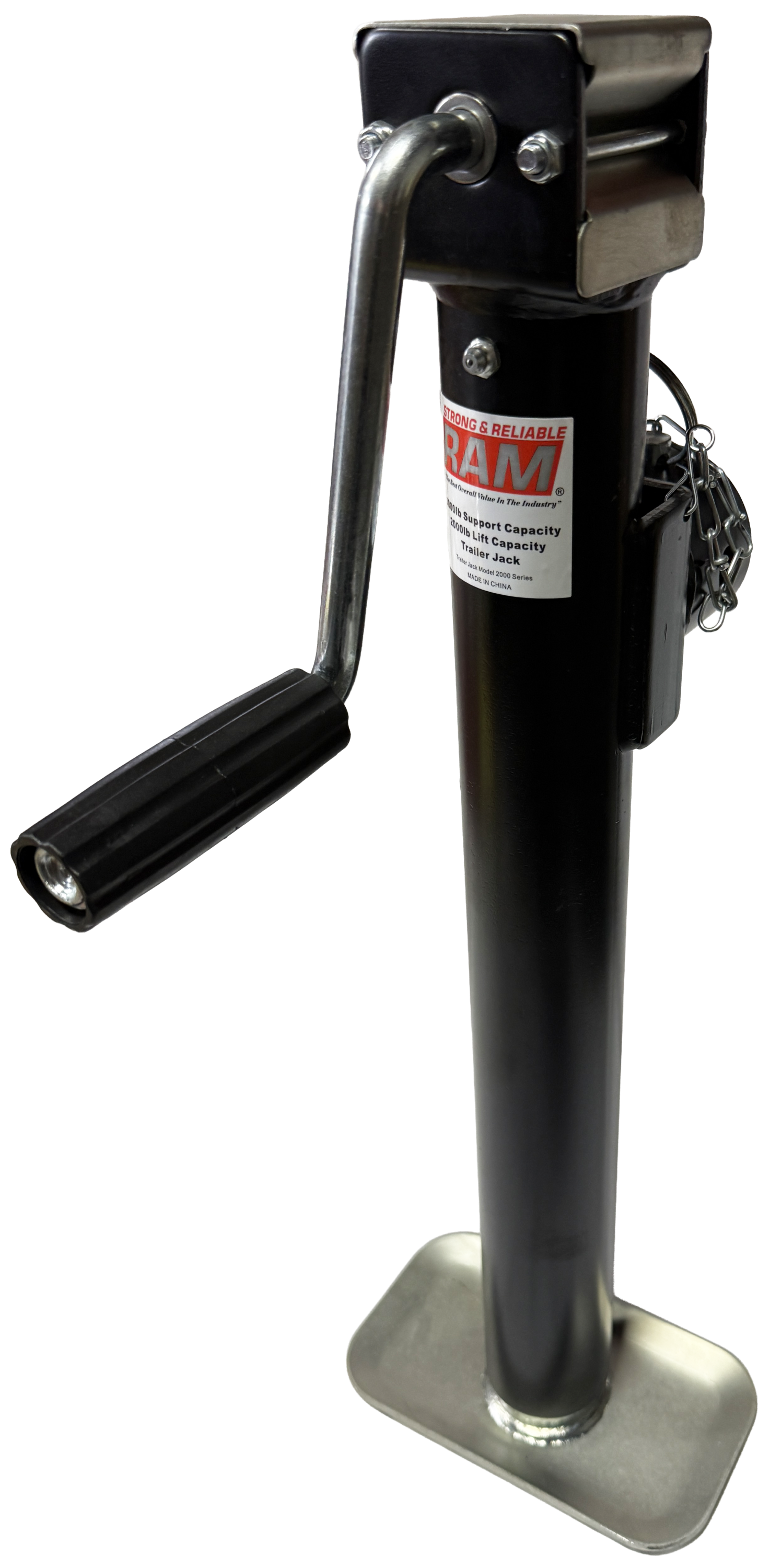

- TJP-5002S-B 15″ travel distance, 15.25″ bracket height from bottom of jack to center of swivel mount, 22.75″ jack height when fully retracted
