8,000lb Capacity Side Wind Jack (Standard Series) – click here

Description

Ideal for use with ag, industrial, commercial, recreational, larger utility and many other types of trailers.

  • 8,000lb Support Capacity / 7,000lb Lift Capacity
  • Large grooved comfort handle to operate the jack
  • Durable exterior grade black finish on outer tube and clear zinc finish on inner tube and drop leg foot
  • 2-1/2″ square outer tube construction
  • Grease zerk for easy greasing of jack
  • 6″x8″ welded on durable zinc sand foot
  • Drop leg adds 13.75″ of adjustability (TJD-7000S and TJDP-7000S-B models)

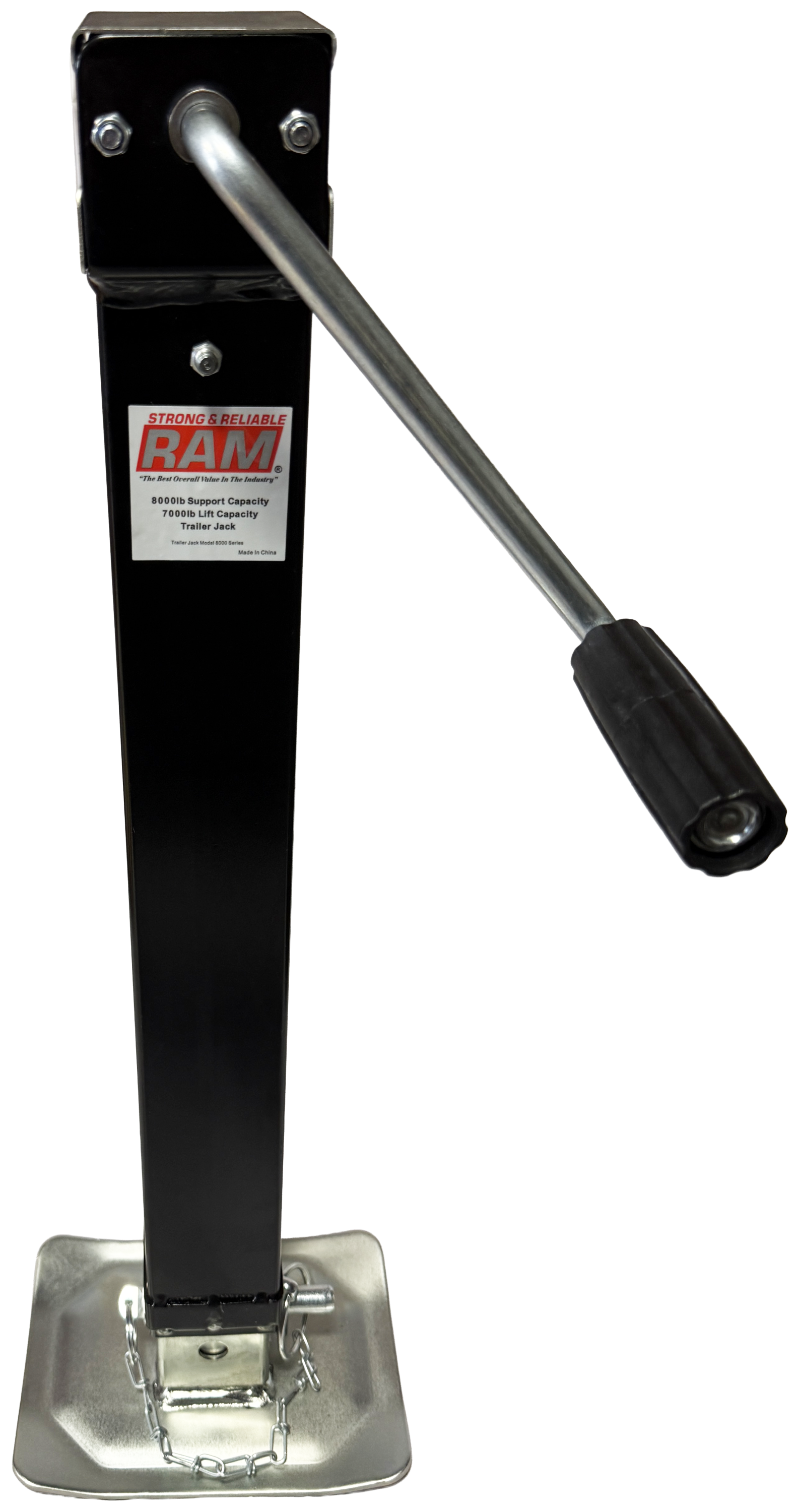

  • TJD-7000S 15″ travel distance, 25.5″ jack height when fully retracted, drop leg direct weld version
  • TJDP-7000S-B 15″ travel distance, 14.5″ bracket height from bottom of jack to center of swivel mount, 25.5″ jack height when fully retracted, drop leg round pipe mount version (3″ round weld on pipe piece)

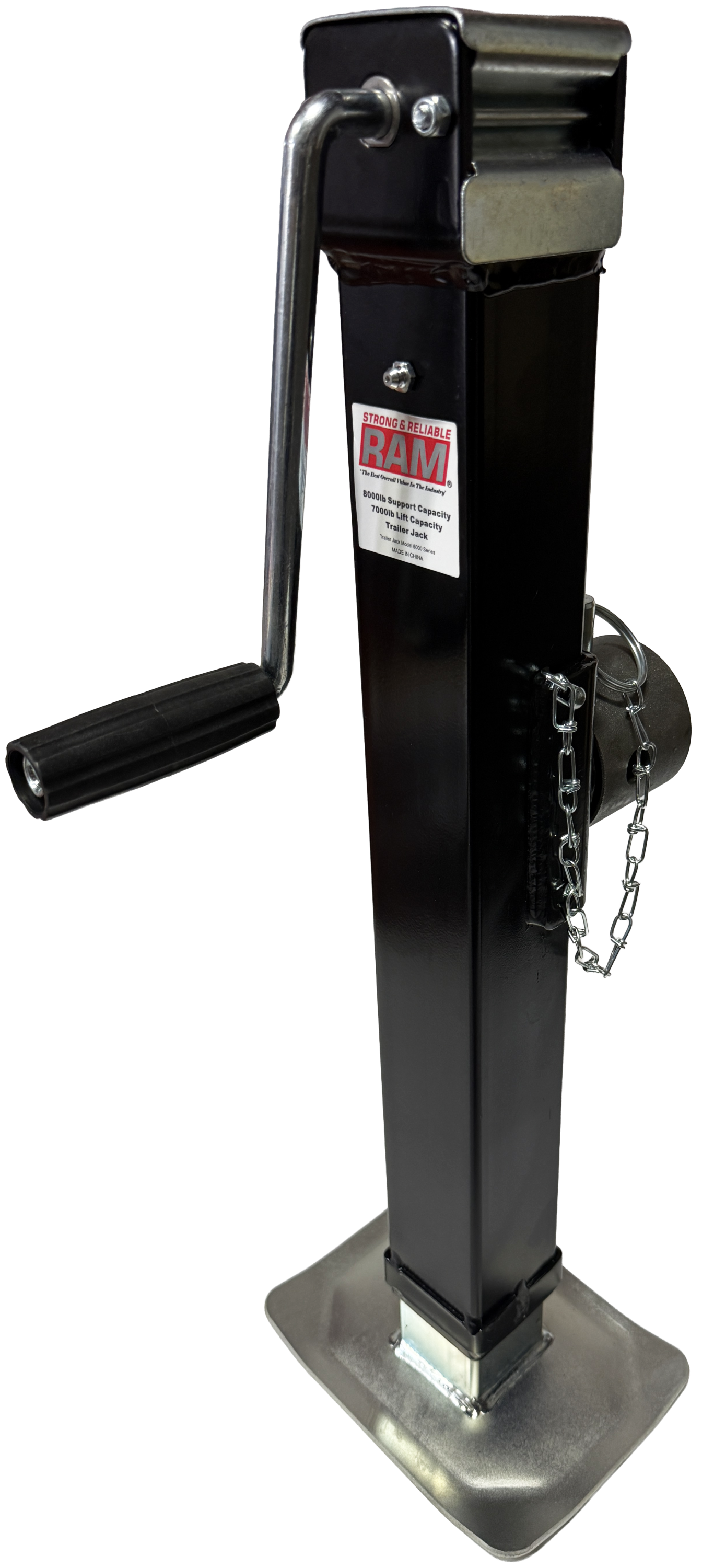

  • TJDP-7000S-FLB 15″ travel distance, 14.5″ bracket height from bottom of jack to center of swivel mount, 25.5″ jack height when fully retracted, fixed leg pipe mount version (3″ round weld on pipe piece) available special order
  • TJDPQ-7000S-B 15″ travel distance, 14.5″ bracket height from bottom of jack to center of swivel mount, 25.5″ jack height when fully retracted, drop leg square pipe mount version (3″ square weld on pipe piece) available special order
  • Installation Instructions – click here
