Description
Ideal for use with ag, industrial, commercial, recreational, larger utility and many other types of trailers.
- 8,000lb Support Capacity / 7,000lb Lift Capacity
- Comfortable claw knob and clear zinc solid bar handle that can be folded away when not in use
- Durable exterior grade black finish on outer tube and clear zinc finish on inner tube and drop leg foot
- 2-1/2″ square outer tube construction
- Grease zerk for easy greasing of jack
- 6″x8″ welded on durable zinc sand foot
- Drop leg adds 13.75″ of adjustability (TJD-7000 model and TJDP-7000-B)

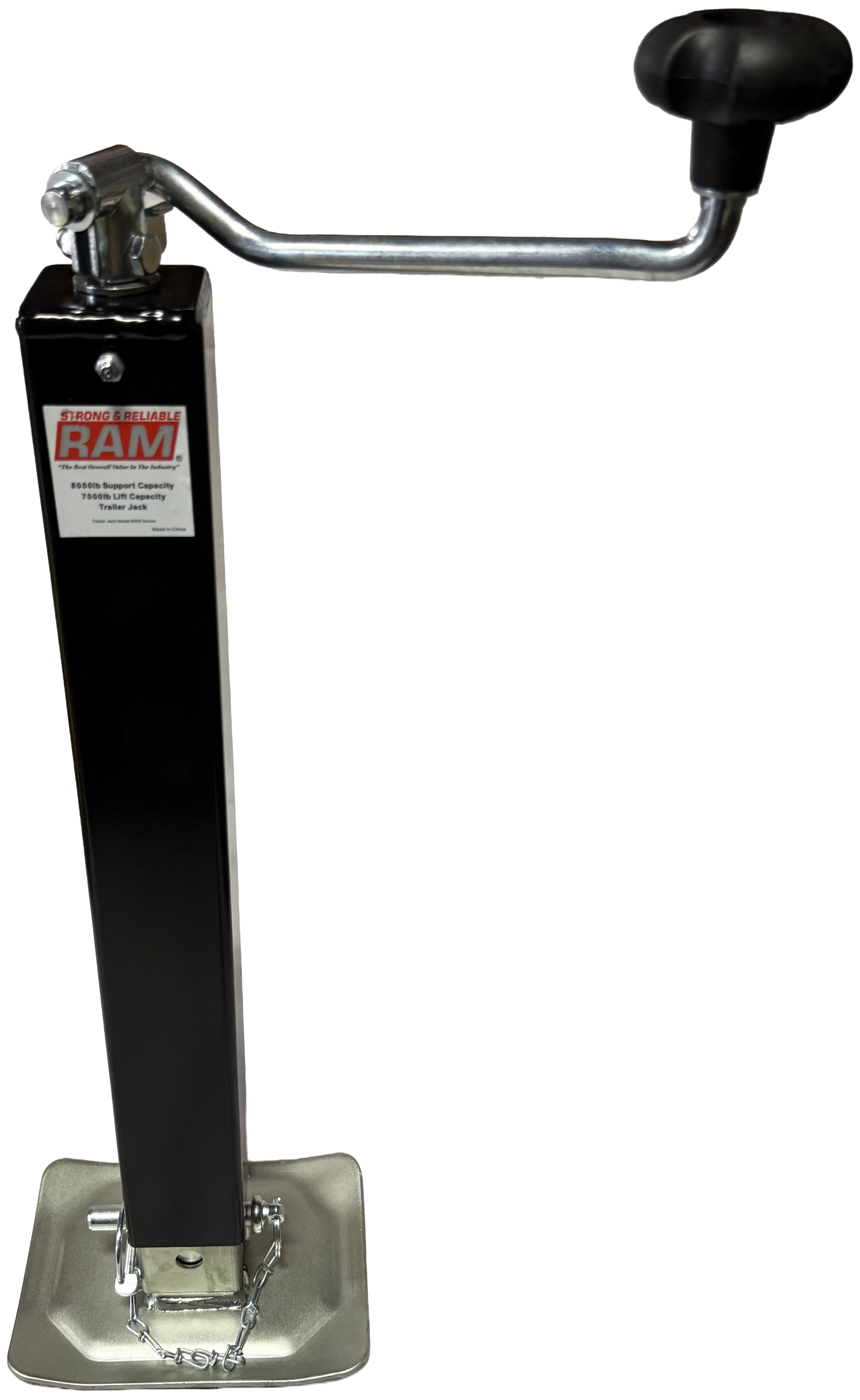

- TJD-7000 15″ travel distance, 25.25″ jack height when fully retracted, drop leg direct weld version
- TJDP-7000-B 15″ travel distance, 14.5″ bracket height from bottom of jack to center of swivel mount, 25.5″ jack height when fully retracted, drop leg pipe mount version (special order available upon request)
- TJDP-7000-FLB 15″ travel distance, 16.5″ bracket height from bottom of jack to center of swivel mount, 25.5″ jack height when fully retracted, fixed leg pipe mount version (special order available upon request)
- Installation Instructions
