Description

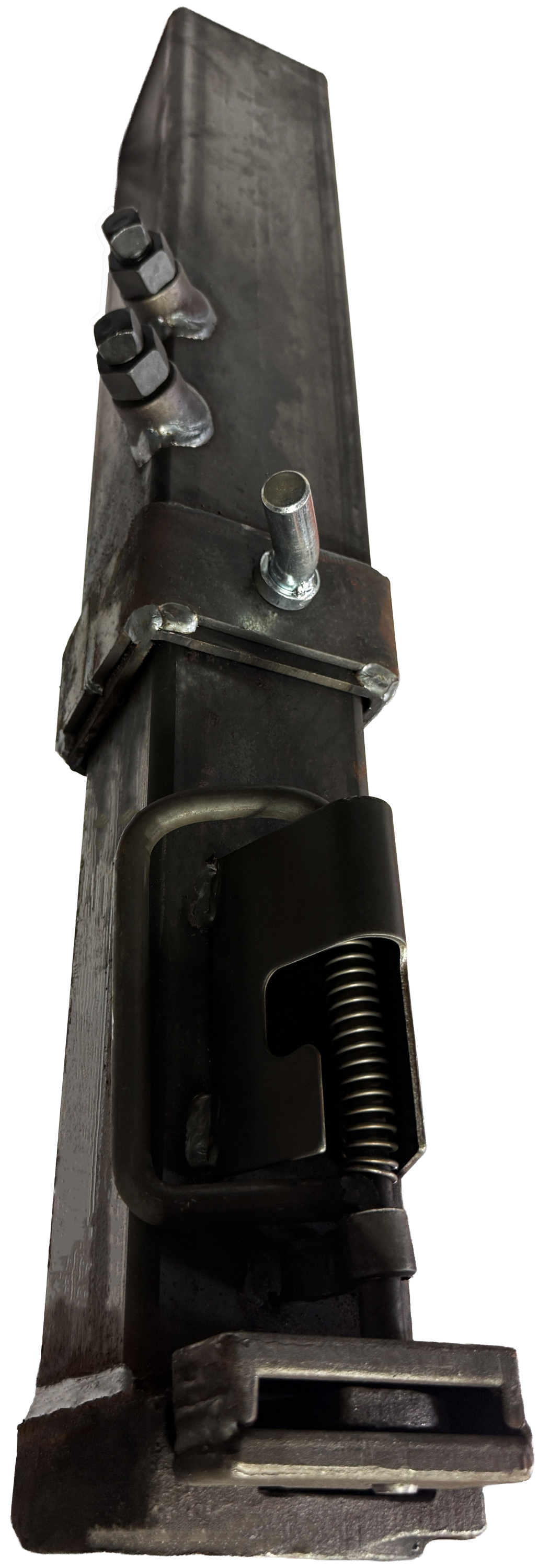

- RAM Gooseneck couplers feature an exclusive one piece cast head design with a curved internal ball clamp bar for greater strength and better fit
- Hidden spring latch mechanism within casting for ease of use and protection of moving parts
- 25K and 30K square tube design features a welded belly band on bottom of outer tube for added strength
- Include two set screws as well as load bearing pin to meet SAE J2638 standard (GCSQ-25008 and GCSQ-30008 models)
- GCSQ-25008 25,000 lb capacity, 2-5/16″ ball pocket, 4.5″ outer tube, .512″ inner tube wall thickness, 32″ retracted height, 8″ adjustability, raw finish
- GCSQ-30008 30,000 lb capacity, 2-5/16″ ball pocket, 4.5″ outer tube, .63″ inner tube wall thickness, 32″ retracted height, 8″ adjustability, raw finish
- GCSQTW-30008 30,000 lb capacity, 2-5/16″ ball pocket, 4.5″ outer tube, .63″ inner tube wall thickness, 32″ retracted height, 7″ adjustability, raw finish (top wind model)
- Installation Instructions
