Description
Ideal for dump trailers for telescopic cylinder application
- 7 Ton 3.75″ x 78″ total travel distance / 36.5″ retracted length 3-stage telescopic cylinder – HCTL-37578
- 7 Ton 3.75″ x 90″ total travel distance / 40.5″ retracted length 3-stage telescopic cylinder – HCTL-37590
- 7 Ton 3.75″ x 108″ total travel distance / 46.5″ retracted length 3-stage telescopic cylinder – HCTL-375108
- 12 Ton 4.4″ x 120″ total travel distance / 48.7″ retracted length 3-stage telescopic cylinder – HCTL-44120
- 12 Ton 4.4″ x 132″ total travel distance / 52.7″ retracted length 3-stage telescopic cylinder – HCTL-44132
- 12 Ton 4.4″ x 144″ total travel distance / 56.7″ retracted length 3-stage telescopic cylinder – HCTL-44144
- 12 Ton 4.5″ x 78″ total travel distance / 30″ retracted length 4-stage telescopic cylinder – HCTL4-4578
- 12 Ton 4.5″ x 90″ total travel distance / 33″ retracted length 4-stage telescopic cylinder – HCTL4-4590
- 12 Ton 4.5″ x 108″ total travel distance / 37.5″ retracted length 4-stage telescopic cylinder – HCTL4-45108
- 12 Ton 4.5″ x 120″ total travel distance / 40.5″ retracted length 4-stage telescopic cylinder – HCTL4-45120
- 12 Ton 4.5″ x 132″ total travel distance / 43.5″ retracted length 4-stage telescopic cylinder – HCTL4-45132
- 12 Ton 4.5″ x 144″ total travel distance / 46.5″ retracted length 4-stage telescopic cylinder – HCTL4-45144
- Telescopic cylinders are available special order upon request

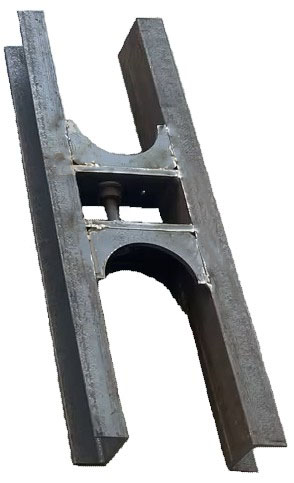

- H-Shape mounting plate/base for telescopic cylinders available special order – HCTL-HBASE (mounts to trailer chassis)
- Top brackets/mounting plates for dump box attachment to telescoping cylinder available special order – HCTL-7SDPL – mounting plate 7 Ton cylinder, HCTL-12SDPL – mounting plate 12 Ton cylinder (Two brackets needed for each telescopic cylinder)
- Telescopic Cylinder Manual – click here
Telescopic kits also available special order (Click here to show what it includes)
- 7 Ton 3.75″ x 78″ (total travel) 36.5″ (retracted length) telescopic cylinder kit – HCTL37578-KIT (w/16 quart poly tank HPU)
- 7 Ton 3.75″ x 90″ (total travel) 40.5″ (retracted length) telescopic cylinder kit – HCTL37590-KIT (w/16 quart poly tank HPU)
- 7 Ton 3.75″ x 108″ (total travel) 46.5″ (retracted length) telescopic cylinder kit – HCTL375108-KIT (w/16 quart poly tank HPU)
- 12 Ton 4.4″ x 120″ (total travel) 48.7″ (retracted length) telescopic cylinder kit – HCTL-44120ST-KIT (w/six gallon steel tank HPU)
- 12 Ton 4.4″ x 120″ (total travel) 48.7″ (retracted length) telescopic cylinder kit – HCTL-44120ST7G-KIT (w/seven gallon steel tank HPU)
- 12 Ton 4.4″ x 132″ (total travel) 52.7″ (retracted length) telescopic cylinder kit – HCTL-44132ST-KIT (w/seven gallon steel tank HPU)
- 12 Ton 4.4″ x 144″ (total travel) 56.7″ (retracted length) telescopic cylinder kit – HCTL-44144ST-KIT (w/seven gallon steel tank HPU)
