Description

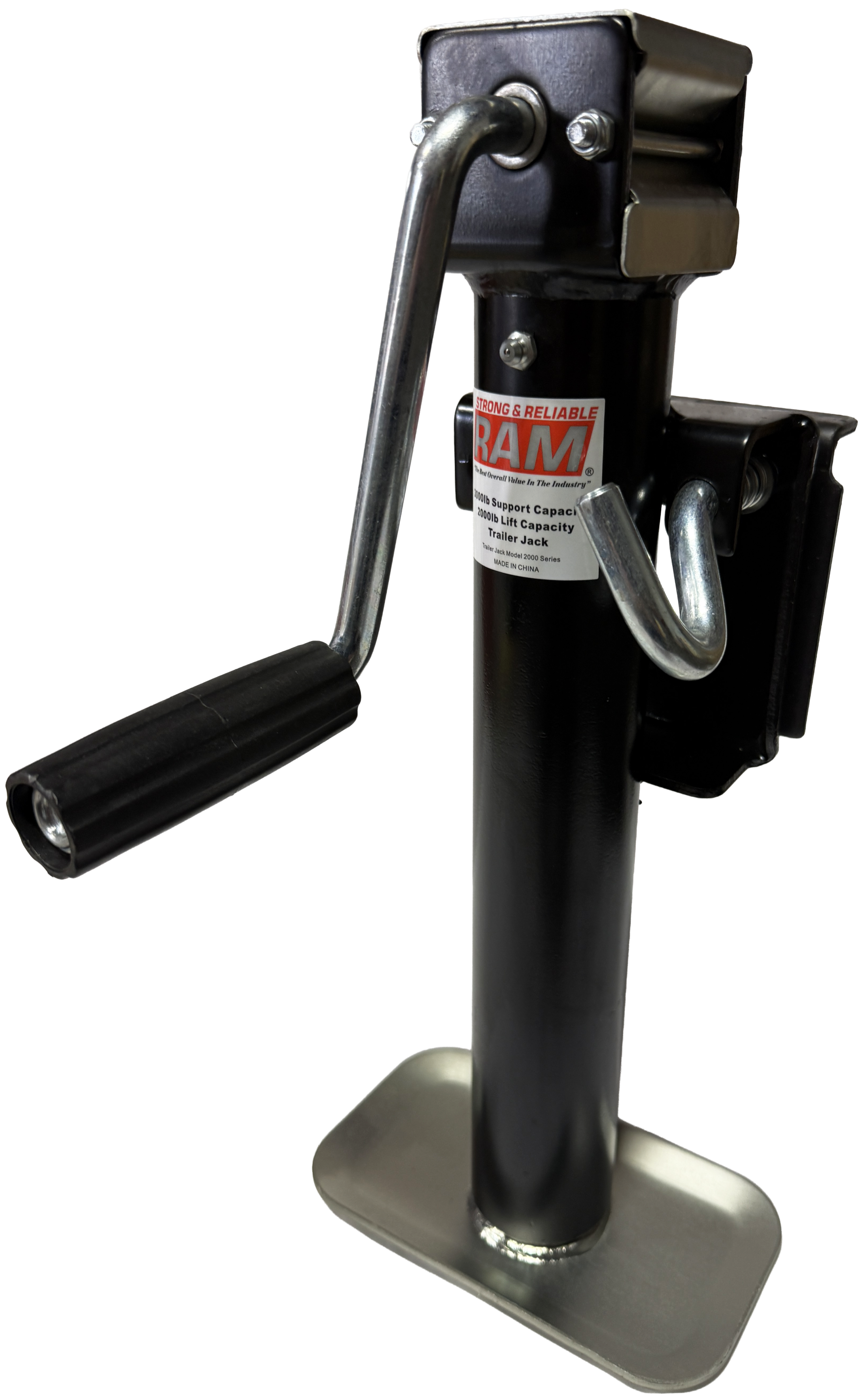

Ideal for use with ag, industrial, commercial, recreational and many other types of trailers.
- 3,000lb Support Capacity / 2,000lb Lift Capacity
- Large grooved comfort handle to operate the jack
- Large 1/2″ pull pin to activate the swivel mechanism
- Durable exterior grade black finish on outer tube and clear zinc finish on inner tube and foot (2 1/4″ outer tube construction)
- Grease zerk for easy greasing of jack
- Deep seated snap ring for side load support and raw weld on bracket
- 3-3/4″x7-1/2″ welded on durable zinc sand foot
- TJB-2001S-B 10″ travel distance, 10″ bracket height from bottom of jack to center of swivel mount, 17.75″ jack height when fully retracted
- TJB-2002S-B 15″ travel distance, 15.25″ bracket height from bottom of jack to center of swivel mount, 22.75″ jack height when fully retracted
- Installation Instructions
