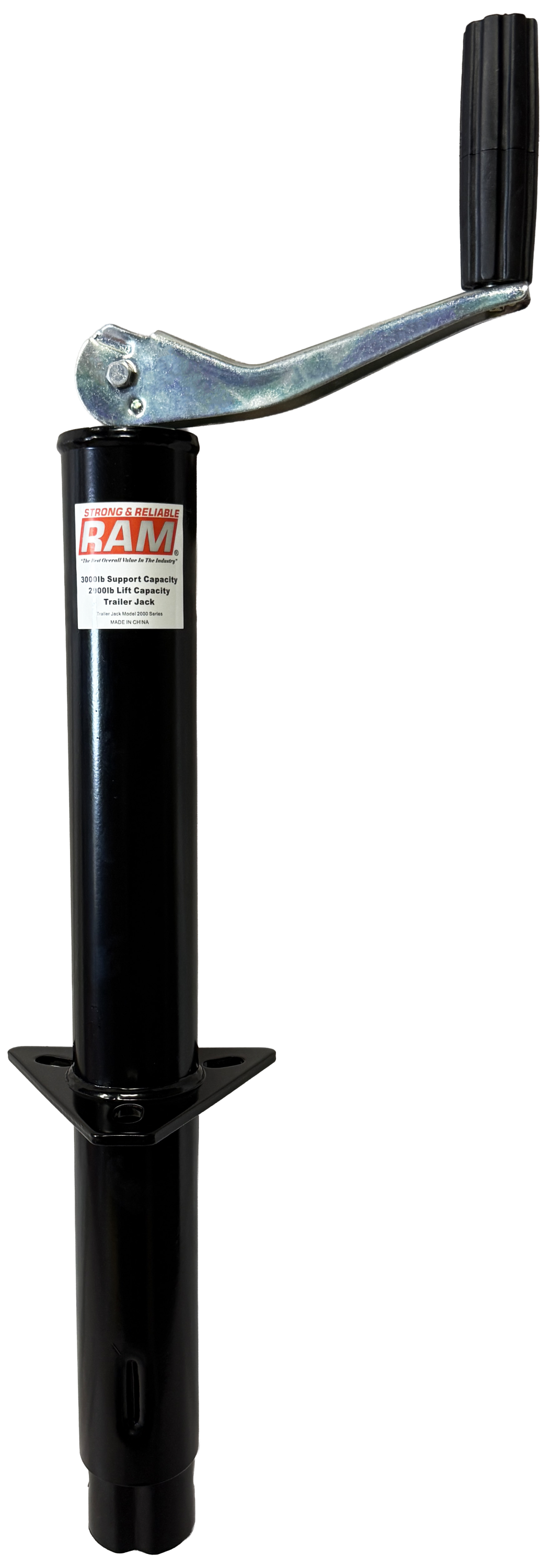

2,000lb Capacity Top Wind Jack

Description

For use with trailers with A-frame couplers.

  • 3,000lb Support Capacity / 2,000lb Lift Capacity
  • Large grooved comfort handle to operate the jack
  • Durable exterior grade black finish on outer and inner tubes (clear zinc model also available) (2 1/4″ outer tube construction)
  • Handle arm durable zinc finish
  • TJA-2000-B 14″ travel distance, 8.25″ bracket height from bottom of jack to bolt flange, 21.25″ jack height when fully retracted
  • TJA-2000-Z 14″ travel distance, 8.25″ bracket height from bottom of jack to bolt flange, 21.25″ jack height when fully retracted – clear zinc outer and inner tubes
  • TJA-2001-B 14″ travel distance, 5″ bracket height from bottom of jack to bolt flange, 21.25″ jack height when fully retracted
  • TJA-2002-B 15″ travel distance, 9.25″ bracket height from bottom of jack to bolt flange, 24.25″ jack height when fully retracted
  • Installation Instructions
