Hydraulic Power Unit (Dual Acting, Power Up/Power Down/Gravity Down)

Description

Hydraulic power units and control switch/remote pendant works with RAM hydraulic jacks and scissor hoist systems.

  • Works with 12 volt deep cycle direct current RV/Marine trailer battery (not supplied)
  • 1.6KW 12v DC motor
  • Dual acting – Power Up/Power Down/Gravity Down
  • 3200 psi extension and 1500 psi retraction working pressure
  • Gravity down saves on battery charge

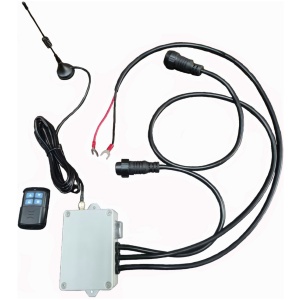

  • Includes control switch/remote pendant with 12′ cord with three button switch
  • HPU-DAGD004 four quart usable volume reservoir, dual acting HPU (available special order upon request)
  • HPU Manual
