Stamped A Frame Couplers

Description

  • Stamped couplers are 100% ball fitted to ensure a proper fit when coupler is attached to the hitch ball
  • Black finish stamped couplers come standard with a durable exterior grade black powder coat finish
  • Coupler latch designs are setup for easy, yet safe coupling and uncoupling
  • Include all SAE required markings and are compliant to J684 standard
  • CA-5100-O 5,000 lb capacity 2″ ball size raw finish

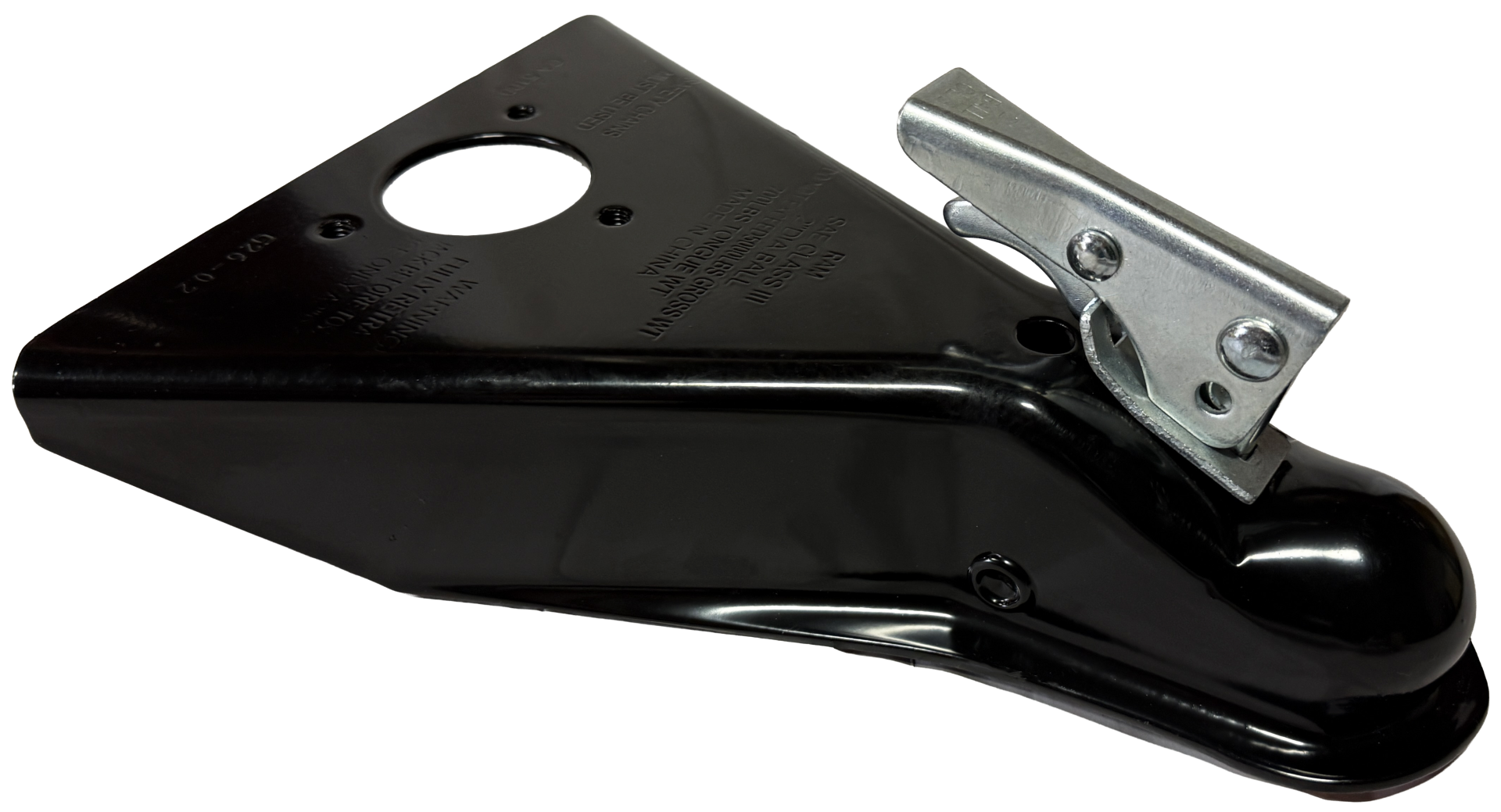

  • CA-5100-B 5,000 lb capacity 2″ ball size black powder coat finish

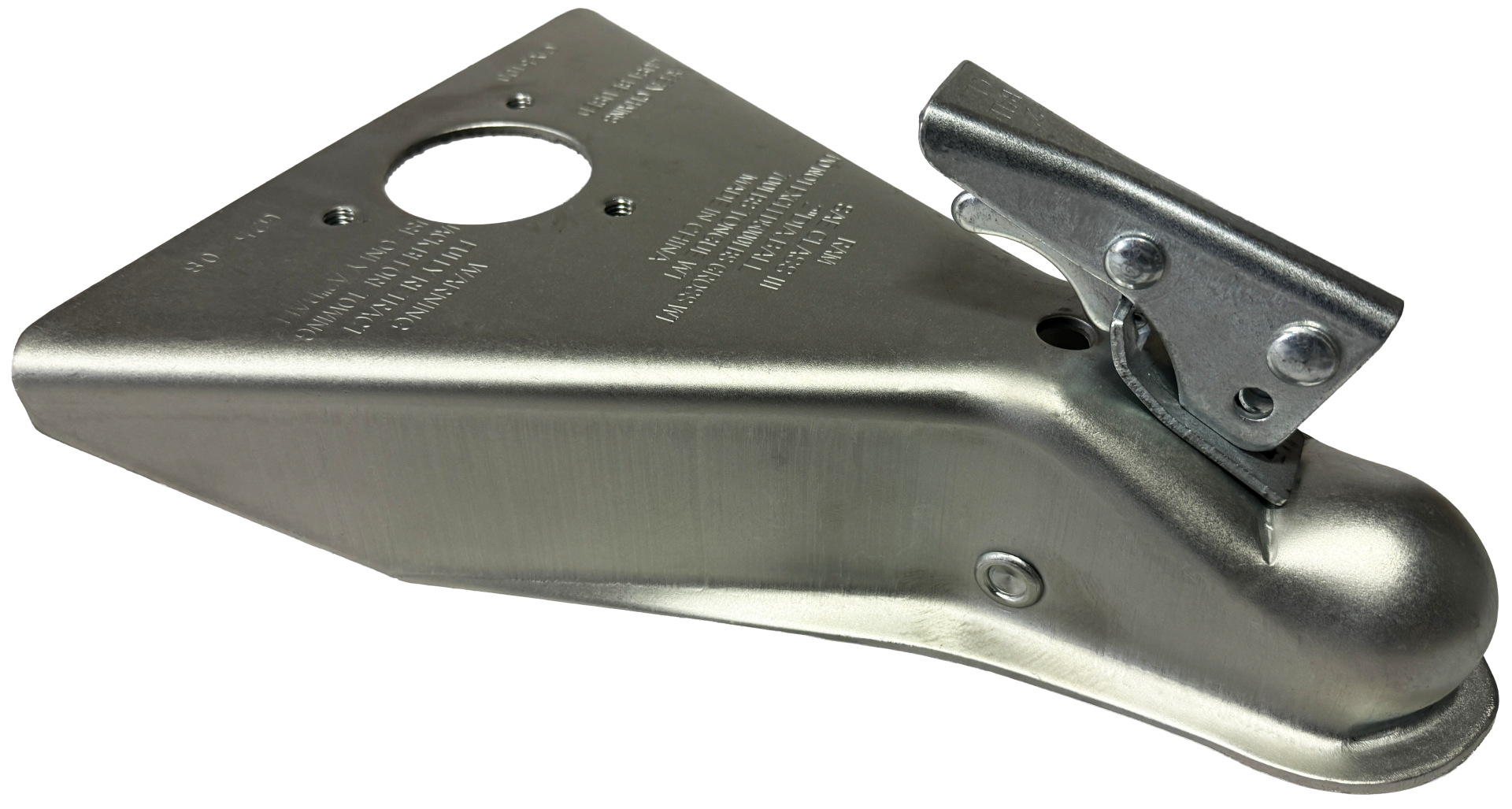

  • CA-5100-Z 5,000 lb capacity 2″ ball size durable zinc finish

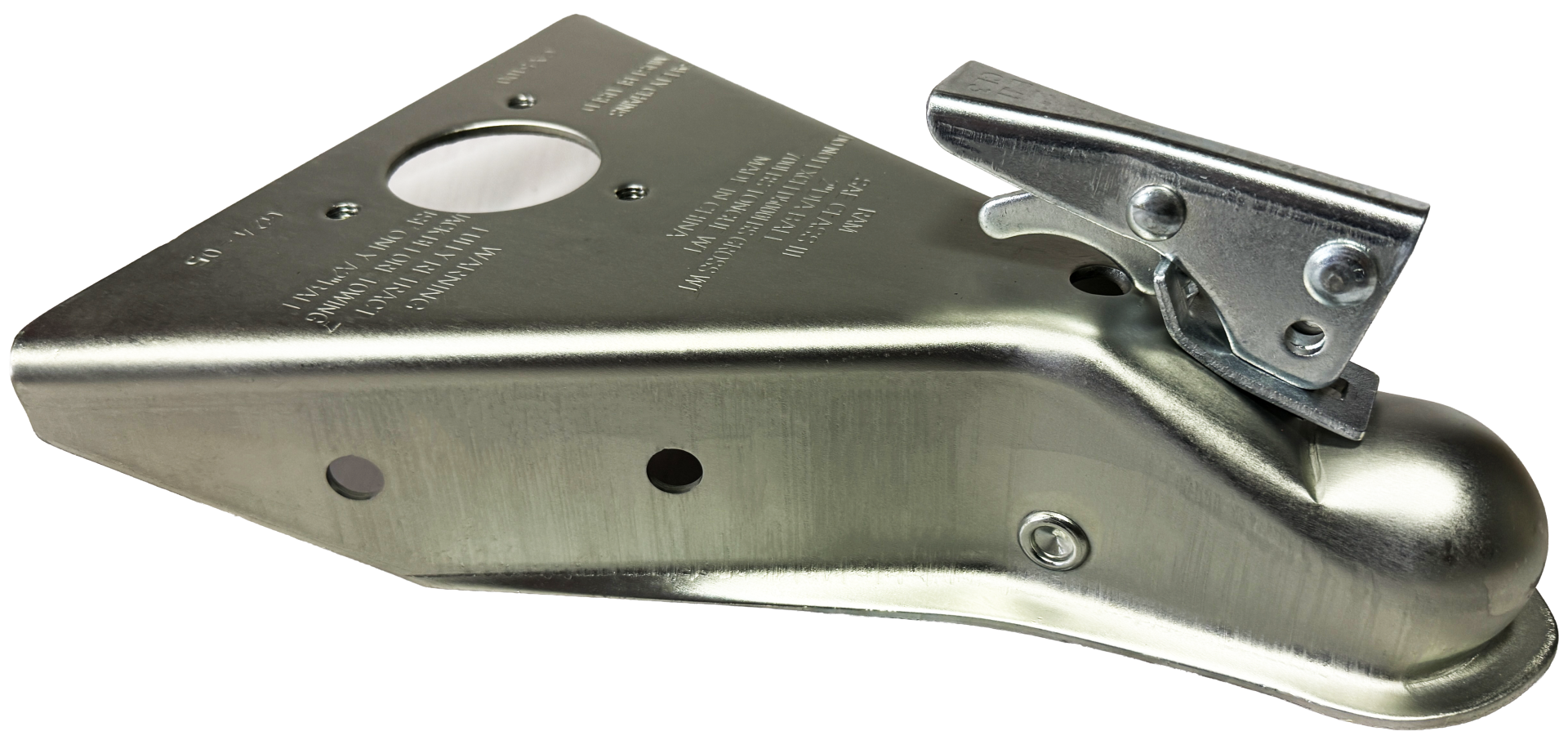

  • CA-5100SH-Z 5,000 lb capacity 2″ ball size durable zinc finish (include mounting holes for bolt on application)
  • CA-5400-O 14,000 lb capacity 2-5/16″ ball size raw finish

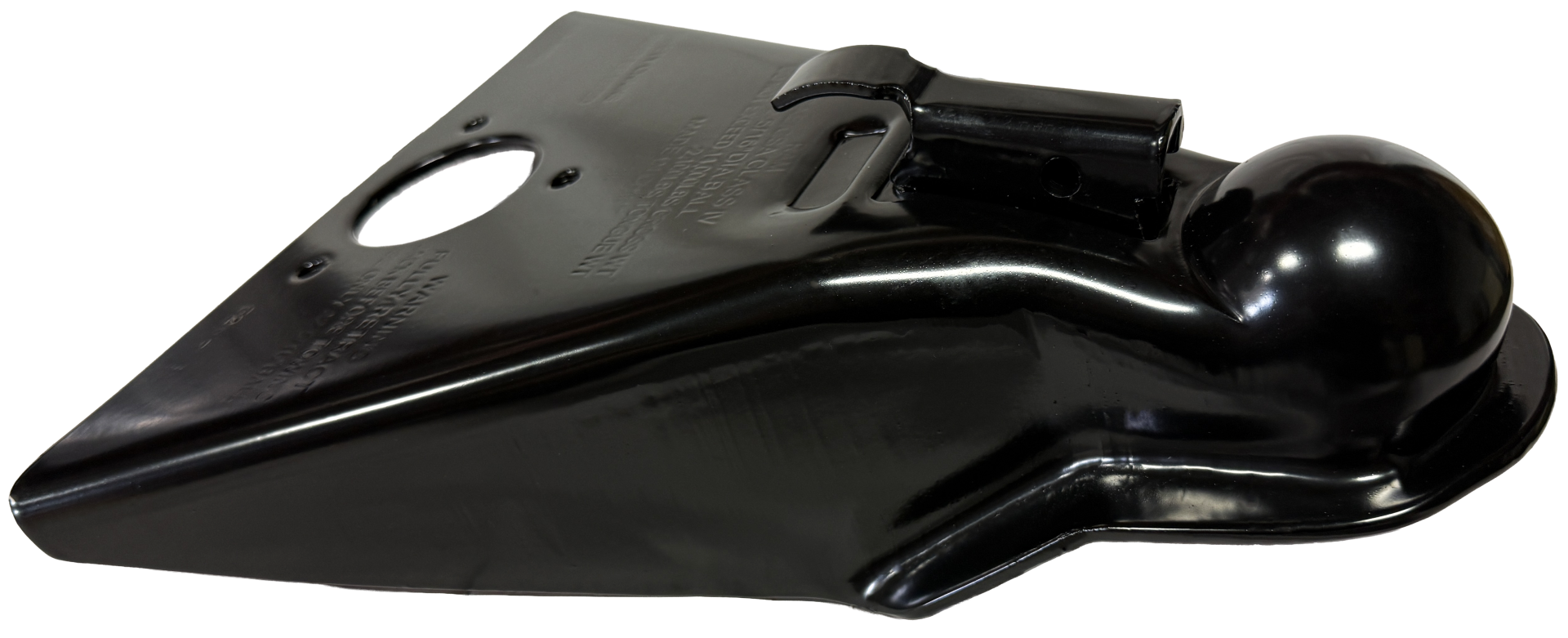

  • CA-5400-B 14,000 lb capacity 2-5/16″ ball sizeĀ  black powder coat finish

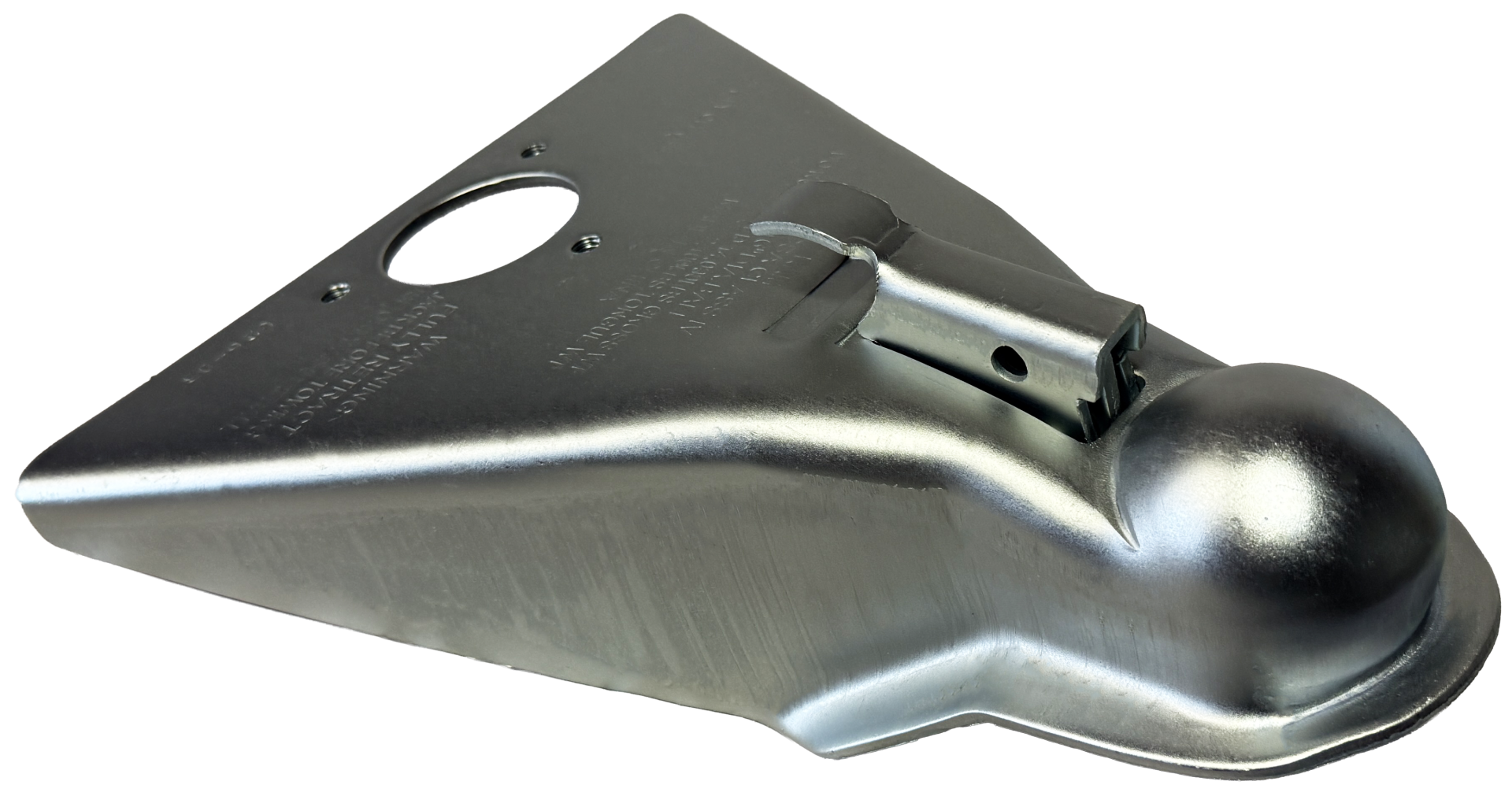

  • CA-5400-Z 14,000 lb capacity 2-5/16″ ball size durable zinc finish

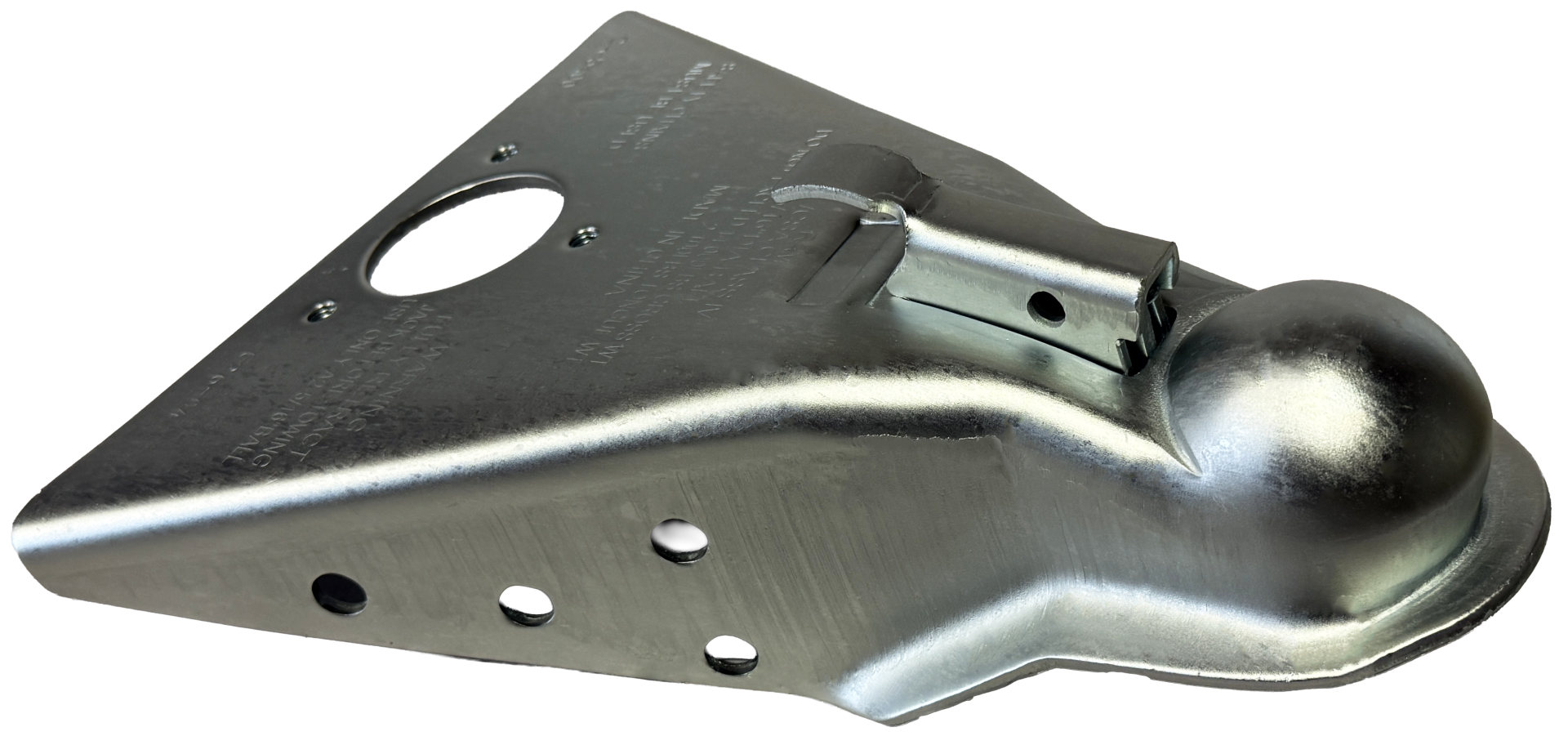

  • CA-5400SH-Z 14,000 lb capacity 2-5/16″ ball size durable zinc finish (include mounting holes for bolt on application)
  • Installation Instructions
