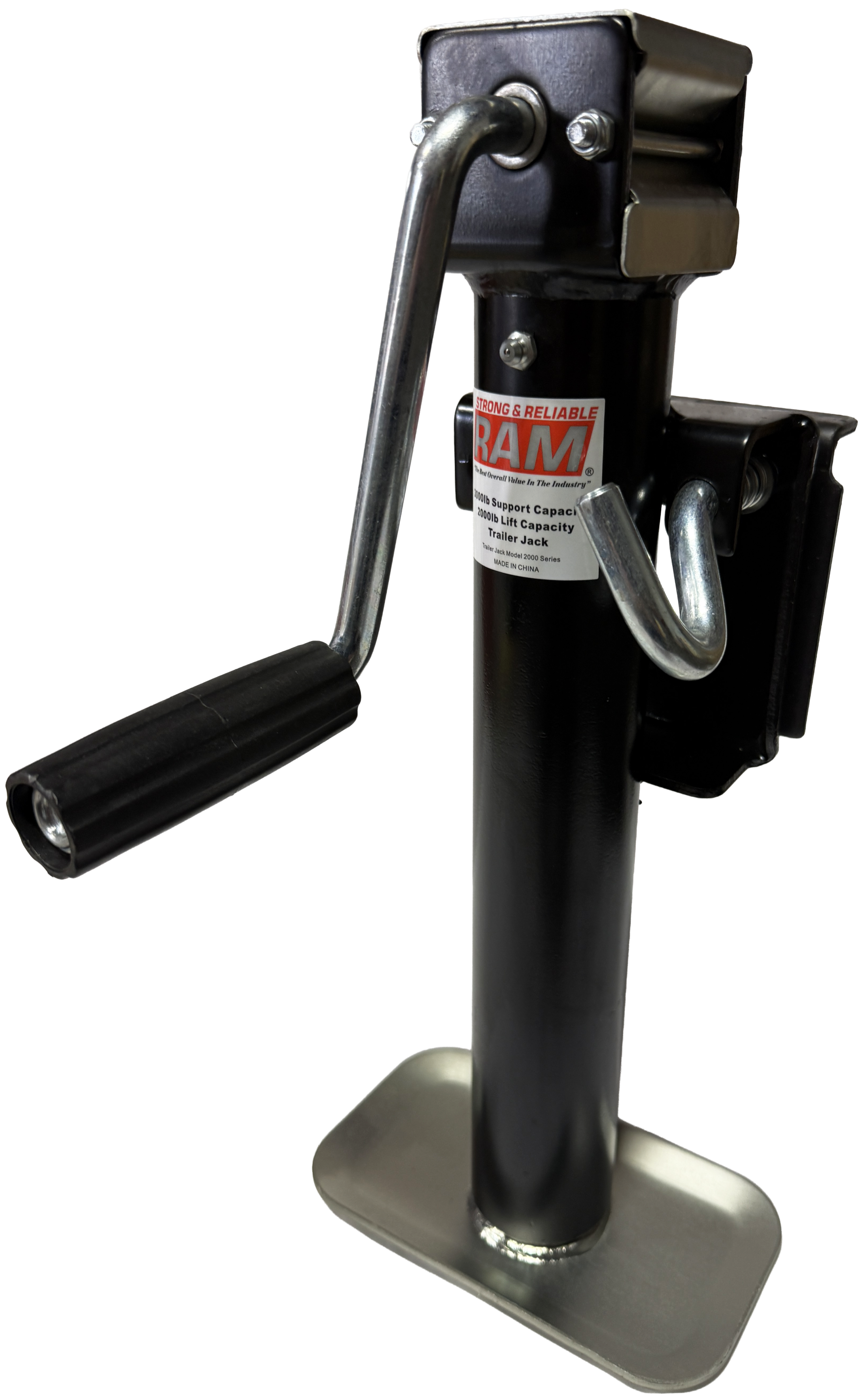

2,000lb Capacity Side Wind Jack

Description

Ideal for use with ag, industrial, commercial, recreational and many other types of trailers.

  • 3,000lb Support Capacity / 2,000lb Lift Capacity
  • Large grooved comfort handle to operate the jack
  • Large 1/2″ pull pin to activate the swivel mechanism
  • Durable exterior grade black finish on outer tube and clear zinc finish on inner tube and foot (2 1/4″ outer tube construction)
  • Grease zerk for easy greasing of jack
  • Deep seated snap ring for side load support and raw weld on bracket
  • 3-3/4″x7-1/2″ welded on durable zinc sand foot
  • TJB-2001S-B 10″ travel distance, 10″ bracket height from bottom of jack to center of swivel mount, 17.75″ jack height when fully retracted
  • TJB-2002S-B 15″ travel distance, 15.25″ bracket height from bottom of jack to center of swivel mount, 22.75″ jack height when fully retracted
  • Installation Instructions
