Description

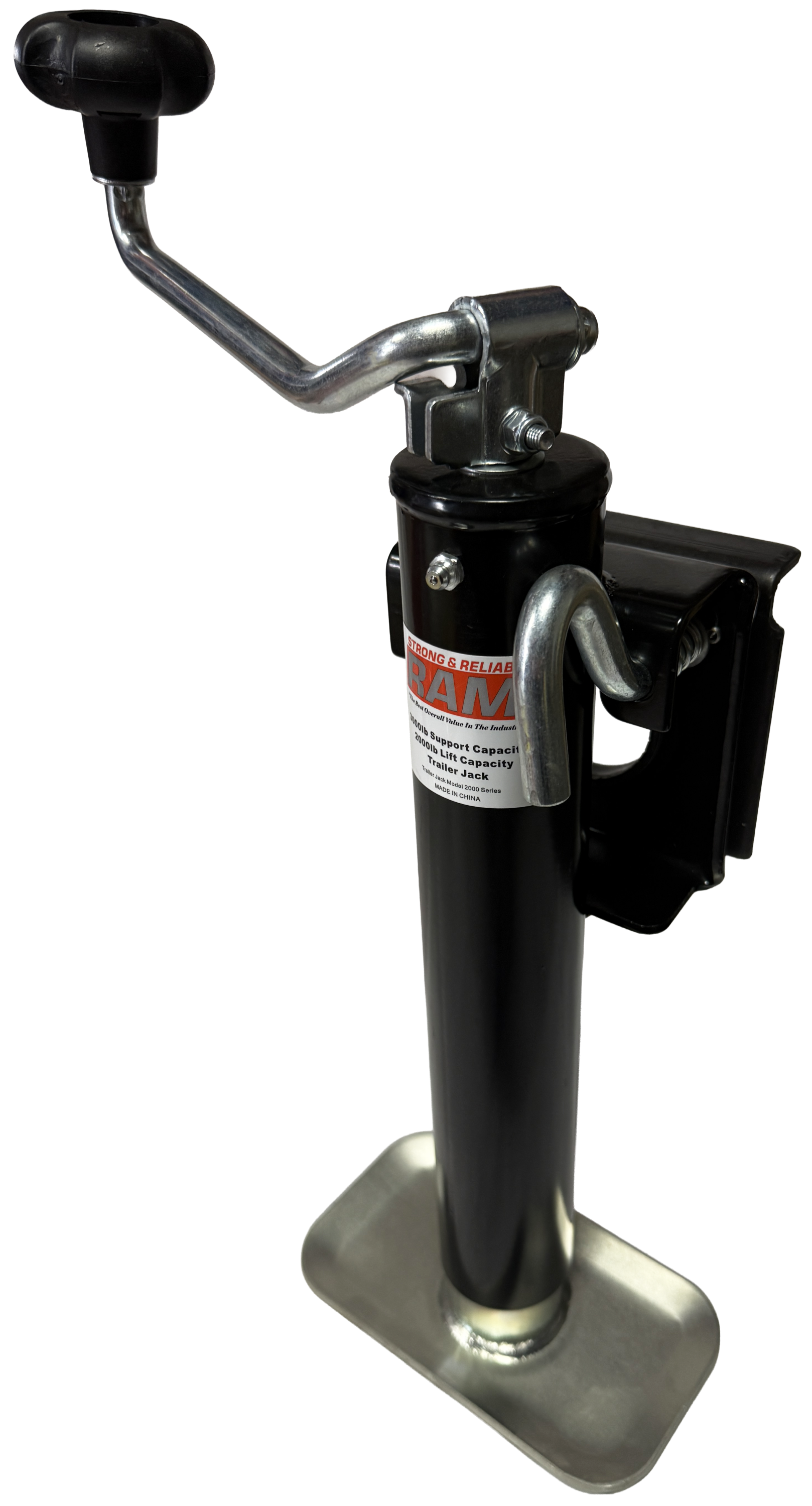

Ideal for use with ag, industrial, commercial, recreational and many other types of trailers.
- 3,000lb Support Capacity / 2,000lb Lift Capacity
- Comfortable claw knob and clear zinc solid bar handle that can be folded away when not in use
- Large 1/2″ pull pin to activate the swivel mechanism
- Durable exterior grade black finish on outer tube and clear zinc finish on inner tube and foot (2 1/4″ outer tube construction)
- Grease zerk for easy greasing of jack
- Deep seated snap ring for side load support and raw weld on bracket
- 3-3/4″x7-1/2″ welded on durable zinc sand foot
- TJB-2001-B 10″ travel distance, 11″ bracket height from bottom of jack to center of swivel mount, 16.75″ jack height when fully retracted
- TJB-2001-Z 10″ travel distance, 11″ bracket height from bottom of jack to center of swivel mount, 16.75″ jack height when fully retracted – zinc outer and inner tube
- TJB-2002-B 15″ travel distance, 16″ bracket height from bottom of jack to center of swivel mount, 22″ jack height when fully retracted
- Installation Instructions
